Product Detail
A-700C
Brand: AMERIGO
Voltage: 380v/440v
Power: 9.3KW
Character: Paint spray booth used in auto factory
Heating System: Diesel
Model: A-700C
Product Description




Our spray booth meet CE and ECO standard. You can compare our product with any product on the market. We have patent that can effectively eliminate VOC.
We can customize the spray booth, welcome to consult with us for further details.
We will not disappoint you
Amerigo A-700C CE Automotive Paint Spray Booth/ Car Spary Booth Oven

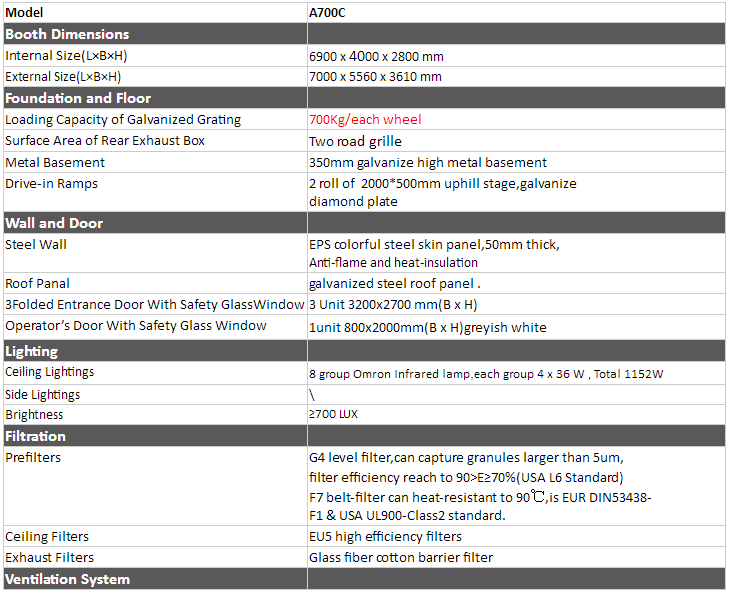

External dimension/mm:7000*5560*3610 (L*B*H)

Internal dimension/mm: 6900*4000*2800 (L*B*H)

Chamber system

  • Foudation and floor- Galvanized grating, loading capacity of each wheel is 700kg.

                                    Surface area of rear exhaust box, 2 row of galvanzed grating

  • Metal basement- 350mm height galvanized steel plate. It is 50mm higher than similar product on market.  Which will enhance the whole ventalation system

  • Drive in ramps-2 ramps of 2000*500mm of galvanized diamond plate.

  • Wall and door- EPS panel

  • Roof panel- Designed with composite structure, the roof panel is made of galvanized steel plate.

  • Tri-folded entrance door-Made of toughened glass with safety glass window. size is 3200×2700mm(B×H)

  • Emergency door-Made of toughened glass with safety glass window. size is 800×2000mm(B×H)

Lighting system

  • High level LED lighting offering LUX≥700

  • Ceiling lights: 8 group, each group 4*36w,total  1152w

Air purification system

  • Full filter down draught system-Prefilter:G4 level filter

                                            Ceiling:EU5 high efficiency filters

                                            Exhaust filter: Glass fiber cotton barrier filter

Air circulation system

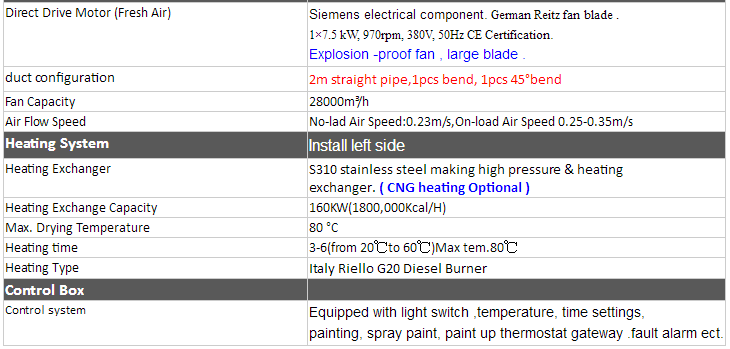

  • We use the best available direct driven motors with backward curved centrifugal aerofoil section blades as a complete unit. which the most efficient fan and motor combination in use today

  • Inlet fan: 1 set of 7.5kw Simens motor and Germany Reitz fan blade

  • No-load air speed: 0.23m/s, On-load air speed 0.25-0.35m/s

Heating system

  • Installation postion: Left side of spray booth

  • Direct fired diesel burner under brand of Italy Riello G20

  • Material is SUS304 stainless steel by adopting argon arc welding technology, working temperature can reach  80.C .

  • Heating time is 3-6 min.s from 20.C- 60.C

Control system

  • Under control of microcomputer program. It is contructed with lighting switch, spray mode swith, curing swithc, curing termperature swith, time setting, failer indicator, temperature controller, temperature limit controller, emergency stop, breakdown alrm and other electric device conforming to CE standard
