A-800C
Brand: AMERIGO
Voltage: 380v/440v
Power: 20KW
Character: Energy saving
Heating System: Diesel Burner
Model: A-800C
Product Description

Amerigo A-800C CE Energy Saving Automotive Spray Booth/Car Paint Booth

Our spray booth meet CE and ECO standard. You can compare our product with any product on the market. We have patent that can effectively eliminate VOC.

We can customize the spray booth, welcome to consult with us for further details.

We will not disappoint you



ModelA800C
External dimension/mm7000*5560*3610 (L*B*H)
Internal dimension/mm6900*4000*2800 (L*B*H)

Foundation and floor

Loading capacity of galvanized grating700Kg/each wheel
Surface area of rear exhaust box27m2 full grid
Metal basementMetal basement of 350mm galvanized
Drive-in ramps3 roll of 200*1030mm uphill stage, galvanize diamond plate
Wall and door

Cabin systemWallboard

Composite rock wool panel

Roof panel

Anti-flame and heat-insulation,  galvanized steel

roof panel

3 foled entrance dooe with safety

glass window

3 unit, 3200*2700mm (B*H)

Personnel door with safety glass

window

1 unit, 800*2000mm (B*H)
Moveable hanger

3M moveable system, special for spare parts

painting.Power 3*1.1kw

Lighting system

Ceiling: 8 group, each group 4*36w, total 1152w.

Side lights: 8 group, each group 2*36W, total 576w.

Brightness: ≥1000 LUX
Purification

Prefilter:G4 level filter+F7 belt press filtration

Ceiling:EU5 high efficiency filters

Exhaust filter: Glass fiber cotton barrier filter

Ventilation systemDirect deive motor (fresh air)

1×7.5KW, 970rpm, 380V, 50Hz, Simens motor,

Germany Reiz draught fan CE certified

Direct drive motor (exhaust air)

1×7.5KW, 970rpm, 380V, 50Hz, Simens motor,

Germany Reiz draught fan CE certified

Duct configuration5 section exhaust tube
Fan capacity28000m3/h
Air flow speed

No-load air speed: 0.23m/s, on-load air speed

0.25-0.35m/s

Heating systemHeating systemInstall position: Left side
Heating exchanger

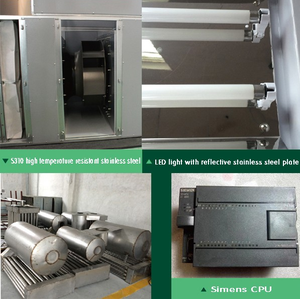

Stainless S310 making high pressure& heating

exchanger (Electric/CNG heating optional)

Heating exhanger capacity215KW (26000k cal/h)
Max. drying temperature80.C
Heating time3-6 (from 20.C to 60.C ) Max tem. 80.C
Heating typeItaly Riello G20 Diesel Burner
Control boxControl system

Simens electrical components: The main circuit

is equipped with multiple protection. Equipped

with light switch, temperaature, time settings,

painting,spray paint,paint up thermostat

gateway,fault alarm etc.
